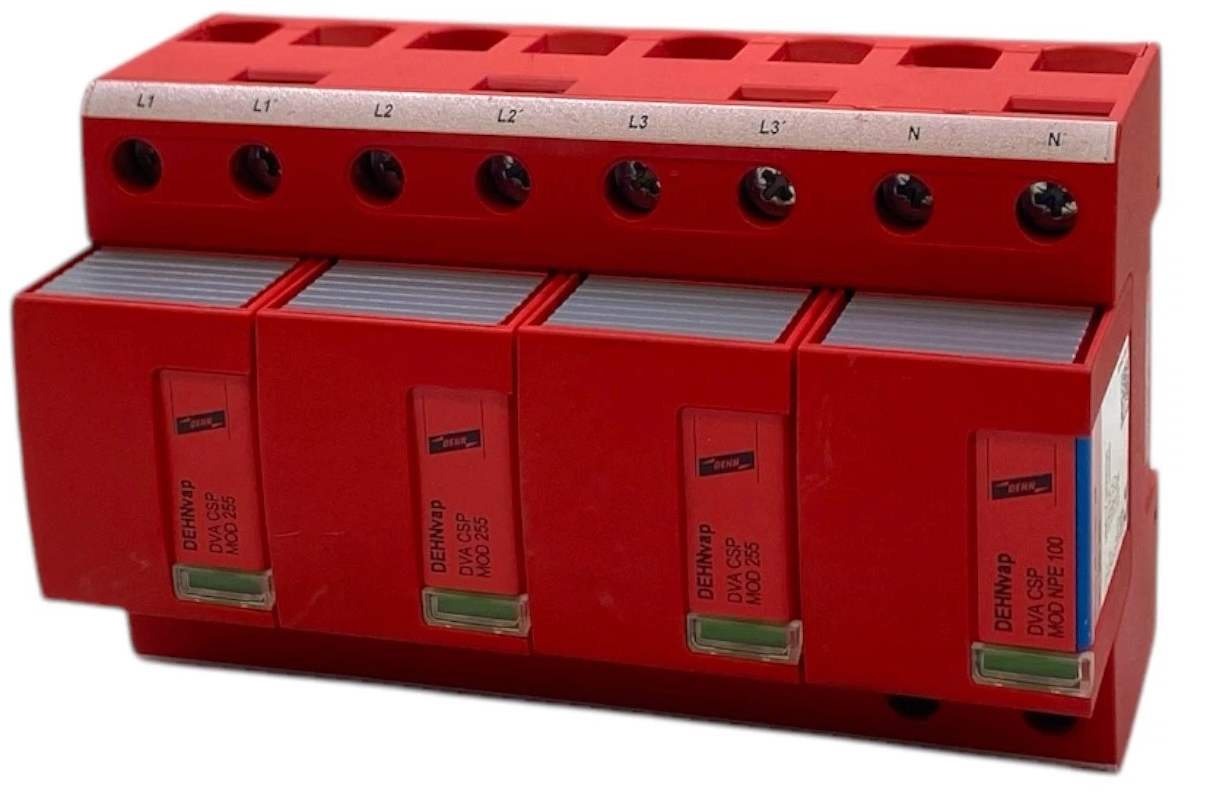

DEHN vap surge protector DVA CSP 3P 100FM

■

Features

Type 1 + Type 2 Combined Protection
High Discharge Capacity
RADAX Flow Technology
Tool-Free Module Replacement
Comprehensive Status Indication

■

Applications

Type 1 + Type 2 Combined Protection
High Discharge Capacity
RADAX Flow Technology
Tool-Free Module Replacement
Comprehensive Status Indication

■

Description

<p align="right" class="['MsoNormal']" dir="RTL" style="text-align:left"><span dir="LTR">The DEHNvap DVA CSP 3P 100FM is a prewired Type 1 + Type 2 combined lightning current and surge arrester. It is based on spark-gap technology and is specifically optimized for protecting power supply systems in mobile radio base stations. A standout feature is its RADAX Flow technology, which provides exceptionally high follow-current limitation and extinguishing capability, ensuring no tripping of 32 A gG fuses up to short-circuit currents of 25 kArms. The modular design uses a pluggable protection module for easy, tool-free replacement. It features an integrated visual status indicator (green/ok, red/faulty) and a remote signaling contact for constant status monitoring<o:p></o:p></span></p>

■

Model Encoding

DVA

DEHNvap product series

CSP

Cell Site Protection

3 Poles

100

100 kA

Model

DVA CSP 3P 100 FM

General

Part Number

SPD Classification (EN/IEC)

Number of Poles

900 360

Type 1 + Type 2 / Class I + Class II

3P+N

Electrical

Max. Continuous Operating Voltage (Uc)

Lightning Impulse Current (Iimp)

Lightning Impulse Current Total (Itotal)

Nominal Discharge Current (In)

Voltage Protection Level (Up)

Follow Current Extinguishing Capability (Ifi)

Response Time (tA)

255 V (50/60 Hz) [L-N] / 264 V (50/60 Hz) [N-PE]

25 / 100 kA (10/350 µs) [L-N]/[N-PE]

100 kA (10/350 µs)

25 / 100 kA (8/20 µs)

≤ 1.5 kV (L-N / N-PE)

25 kArms / 100 Arms

≤ 100 ns

Mechanical

Dimensions (Width)

Mounting Type

Degree of Protection

Housing Material

Connection Cross-section (Solid/Flexible)

8 modules / 144 mm (DIN 43880)

35 mm DIN rail (EN 60715)

IP 20

Red thermoplastic, UL 94 V-0

Max. 50 mm² / 35 mm²

Environmental

Operating Temperature Range

-40 °C to +80 °C

Standards & Approvals

Compliance

EN 61643-11, IEC 61643-11

Model

DVA CSP 3P 100 FM

Standards & Approvals

Approvals

KEMA, UL

Signaling

Remote Signaling Contact Type

Switching Capacity (AC)

Floating changeover contact

250 V / 0.5 A
