AC load bank 3PH-100KW

niawell www.niawell.com

AC load bank

3PH-100KW

Website

■

Features

Capability to operate on three-phase and single-phase networks
Suitable dimensions with easy portability
Capability to operate on DC voltage
Capability to be paralleled to increase capacity

■

Applications

Testing and commissioning of generators and UPS systems
Real-world load simulation for solar and wind systems
Calibration and troubleshooting of power systems
Simulation of complex loads in research systems

■

Description

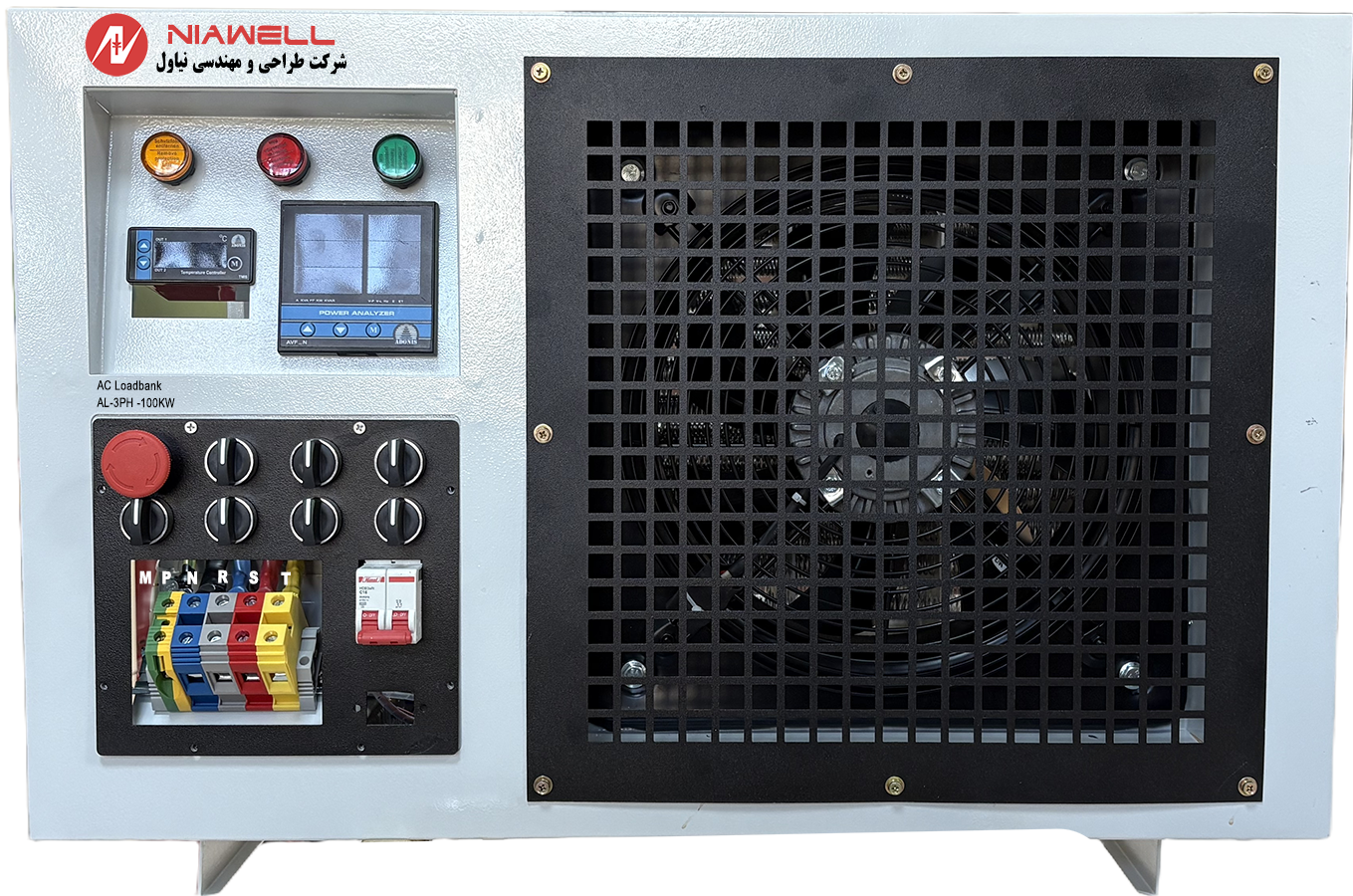

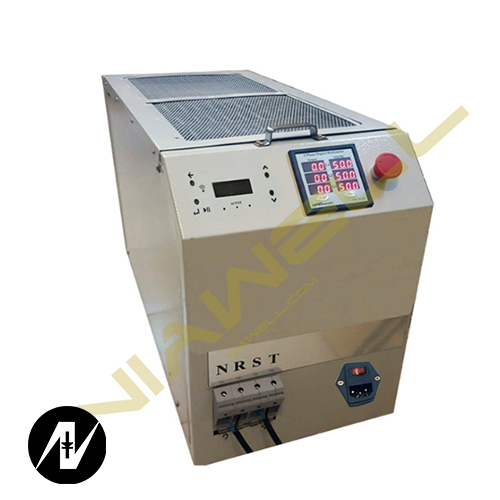

Virtual AC load bank model PAL-3Ph-100kW, very suitable for testing and commissioning diesel generators and high-power UPS systems. This system has a resistive load with a maximum of 100 kW and can be connected to single-phase or three-phase networks. Its small size and weight make it easy to transport. The system can be used manually in two modes.

■

Model encoding

AC load

3PH

3-phase

100KW

Power

niawell www.niawell.com

AC load bank

3PH-100KW

■

Specification

Model

3PH-100KW

Electrical Ratings

Main Input Voltage

Power Rating

Auxiliary Power Supply

240/400 VAC, 3-phase, 50 Hz

100 kW

220 V, 1-phase, 50 Hz

Cooling System

Type

Forced air cooling

Load Steps

Steps

2, 3, 5, 20, 20, 50 kW

Mechanical Specifications

Dimensions (W × D × H)

Weight

46 × 100 × 93 cm

80 kg

Monitoring Features

Electrical Parameters

Total Power, Voltage, Current, Frequency

Safety and Protection

Input Protection

Branch Protection

Fan Protection

Main circuit breaker (250 A, 3-phase)

Fuse protection for each load branch

Fault detection via airflow detector
